Factory IO to FluidSim

jmarti64 · May 13, 2020, 10:29am

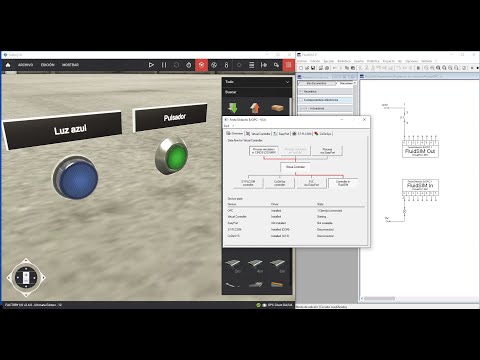

I made a video about to conect FluidSim to Factory IO

janbumer1 · June 17, 2020, 11:52am

Nice one! Didn’t even know this was possible!

Now we only need Process I/O with tanks, valves and pumps. @brunovgr

wayneschaefer · June 17, 2020, 2:30pm

Thanks for the video. I watched most with translation to English and found it understandable. I really need to play more with OPC … nice that you got it to work.

paul.murray · January 26, 2021, 10:43pm

How did you get pneumatic actuators? I have the ultimate edition but these do not exist?

theophile.umuhire · March 16, 2021, 1:39pm

Hello,

Thank you for this video.
But I still have a probleme with the OPC Client DA/UA.
When I select FestoDidactic.EzOPC.1 as server.
I have only the representation of the bytes and not each bit (print screen in attachement).

How can I configurate the OPC Client DA/UA to have each bit visible in order to assign the sensors and actuators?

janbumer1 · May 17, 2021, 9:38am

You mean the Pusher?

PS. Sorry for the late reply.

janbumer1 · May 17, 2021, 9:55am

Afaik it depends on the OPC server if you can address single bits or not. But I don’t work enough with OPC to tell you more.

brunovgr · May 18, 2021, 11:12am

@janbumer1 Yes, you are right. @theophile.umuhire You will have to configure Bool items in the OPC server. Factory I/O just browses the OPC server address space and retrieves all items that go through the filters.

Unfortunately, I don’t have access to that OPC server in our labs in order to investigate this further.
